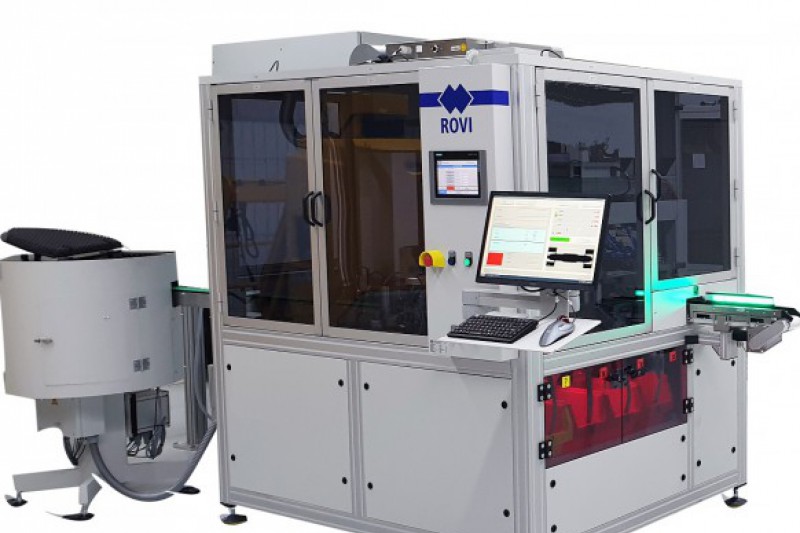

ROVI Indexing systems, handling systems & robots

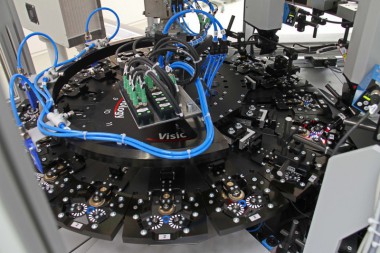

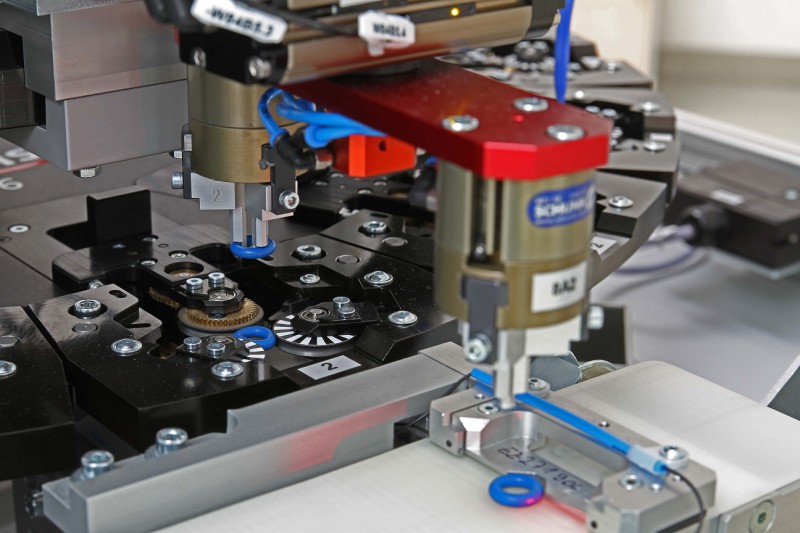

ROVI is an inspection system with a rotary indexing table, which positions each individual part in front of one or several sensor units. The system has been designed for parts with complex geometries or very high inspection requirements. In addition to surface and geometrical defects, the system can also detect defects on threads.
Typical inspection tasks for a ROVI system are, for example, seals which have to be stretched or squeezed in order to find hidden fissures, or parts with specific threads, sealing areas, tooth flanks or undercuts that have to be inspected with a very high resolution or even line by line.
Advantages in your production:
Technical specifications:
- Rotary indexing system with deformation technology
- Inspection of end faces, side faces and lateral surfaces
- Throughput of up to 1,800 parts per hour
- Optimised for part size: OD 15mm - 100mm
- Measuring accuracy: from ±1μm
- Robust machine design with high-quality technological components
- Powerful multi-core processors for maximum inspection speeds
- Closed system design for maximum purity
How NELA indexing inspection systems work:
- Use of rotary indexing tables or longitudinal transfer systems
- Pick & place robots can also be used
- Parts are picked up individually and transported under test sensors
- Gentle handling to avoid damage
Models of indexing inspection systems:
- Depending on part properties: rotary indexing tables or longitudinal transfer systems
- Possibility of stretching or squeezing for elastic parts

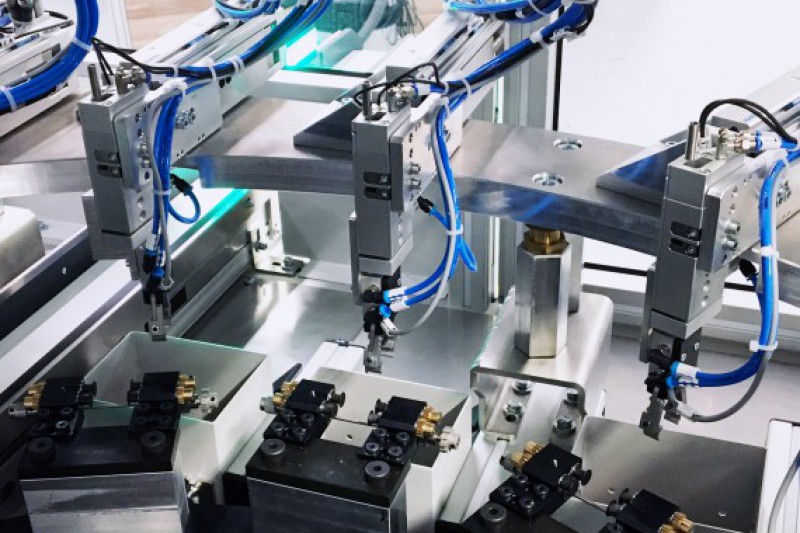

- Customised sorting via blow-out or paddles into containers
- Option for connection to customer systems, e.g. packaging systems
Our sales team will be happy to advise you - just ask us!
sales [at] nela.de (Contact us now)
