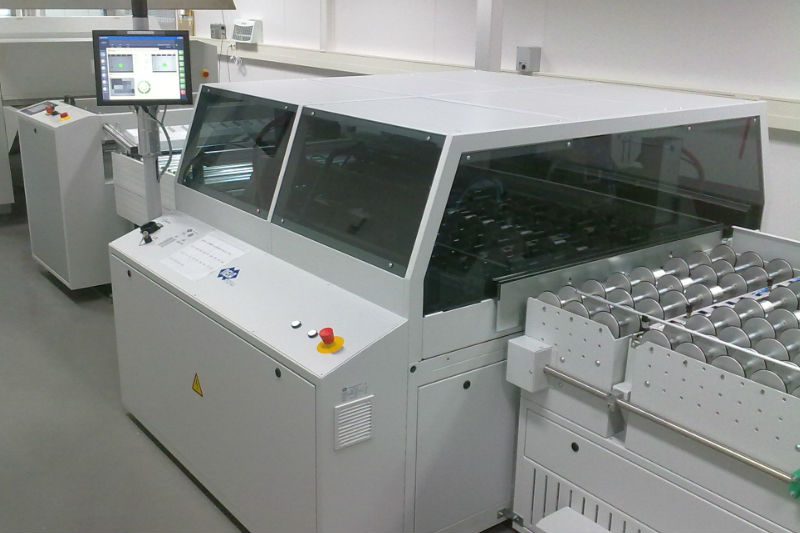

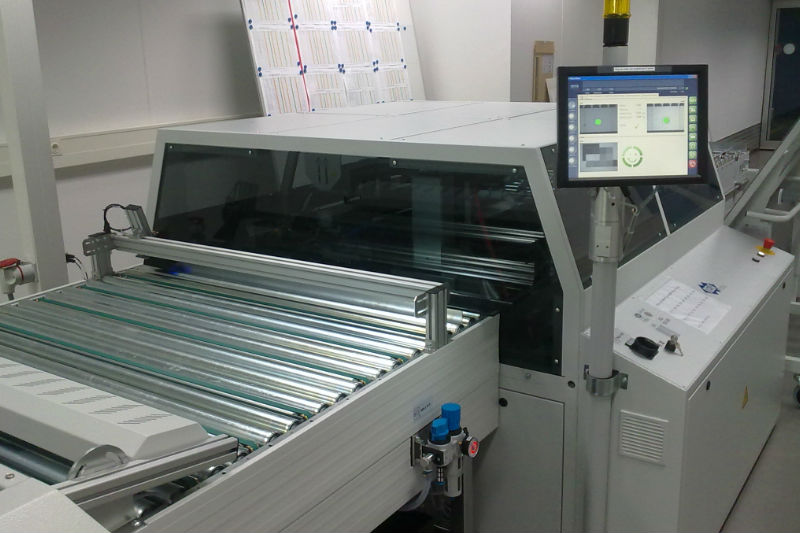

The NELA VCP is our proven high-precision, register punching and bending system with optical plate alignment. It is available for every plate size and processes different plate formats such as a combination of sheet-fed and web offset formats without problems.

With more than 3,000 installations worldwide, it's our global best-selling register punching and bending system with optical plate alignment. It is available in different models and can easily be integrated into any automation solution.

Technical details
  • Optical alignment of register punching and bending in one cycle
  • Register-true positioning of offset plates through high-resolution digital cameras and imprinted registration marks
  • The three-point system allows pre-positioning of the printing plates and serves as a backup for the optical alignment
  • Cleaning and oiling of the punching tools before each punching process ensures the long lifetime of the equipment as well as a continued burr-free and accurate register punching
  • Stepper motor-controlled 3-axis positioning
  • NELA VCPnet - intuitive user interface
  • Siemens S7 compatible
  • Pneumatic components from FESTO
  • Network capability via event channels
  • PC-based sequence control
  • Open integration-platform for easy integration of new applications
  • Priority-controlled alarm system: error, warning, information
Model variants

VCP T:

  • Integrated plate shears

VCP M:

  • Definition of several bending layouts
  • Different bending-angle definable

VCP flexx:

  • For the processing of different plate sizes with varying punching and folding configurations
  • Different bending radius possible
  • With fully automatic dual-radius changer, depending on the configuration on one or two plate edges
  • Can be combined with M-technology or plate shears
Options
  • NELA PQM +: automatic measurement of the printing plates' image result which enables 100% control of plate production with regard to register accuracy, illumination and development quality
  • Barcode reader
  • Inkjet Printer
  • NELA PageTracking

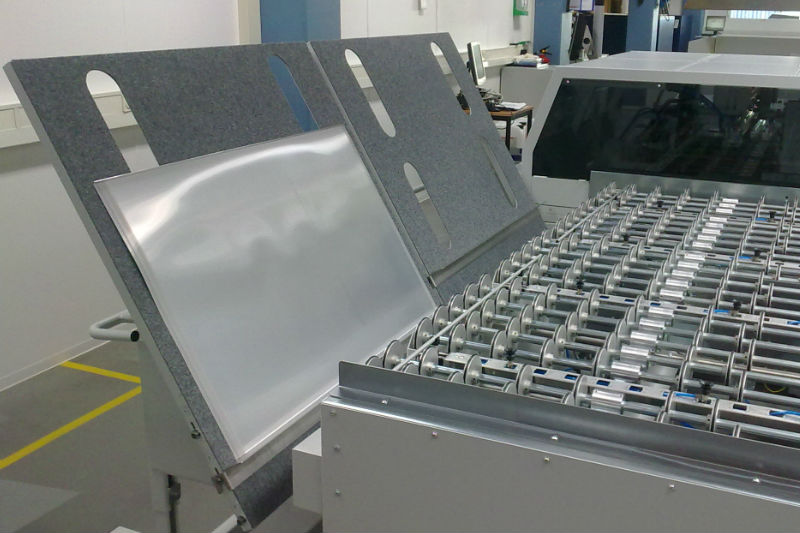

  • Plate transport systems
  • Automatic plate sorting
  • NELA Status Center
  • VPN +
  • NELA Service Packages
